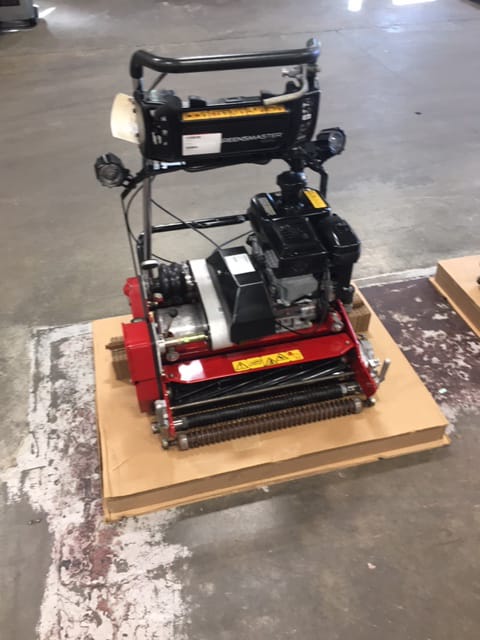

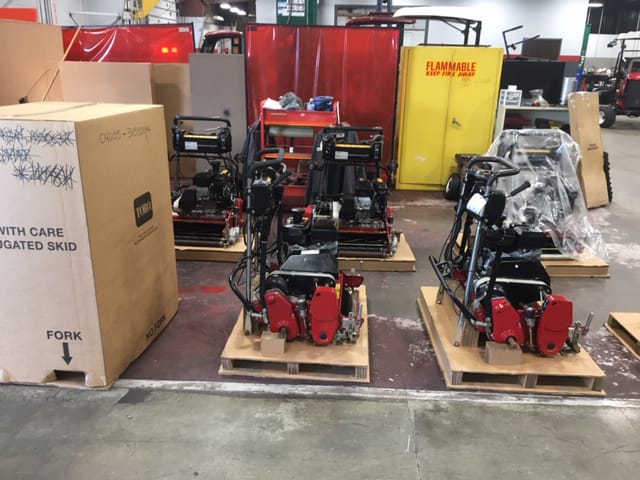

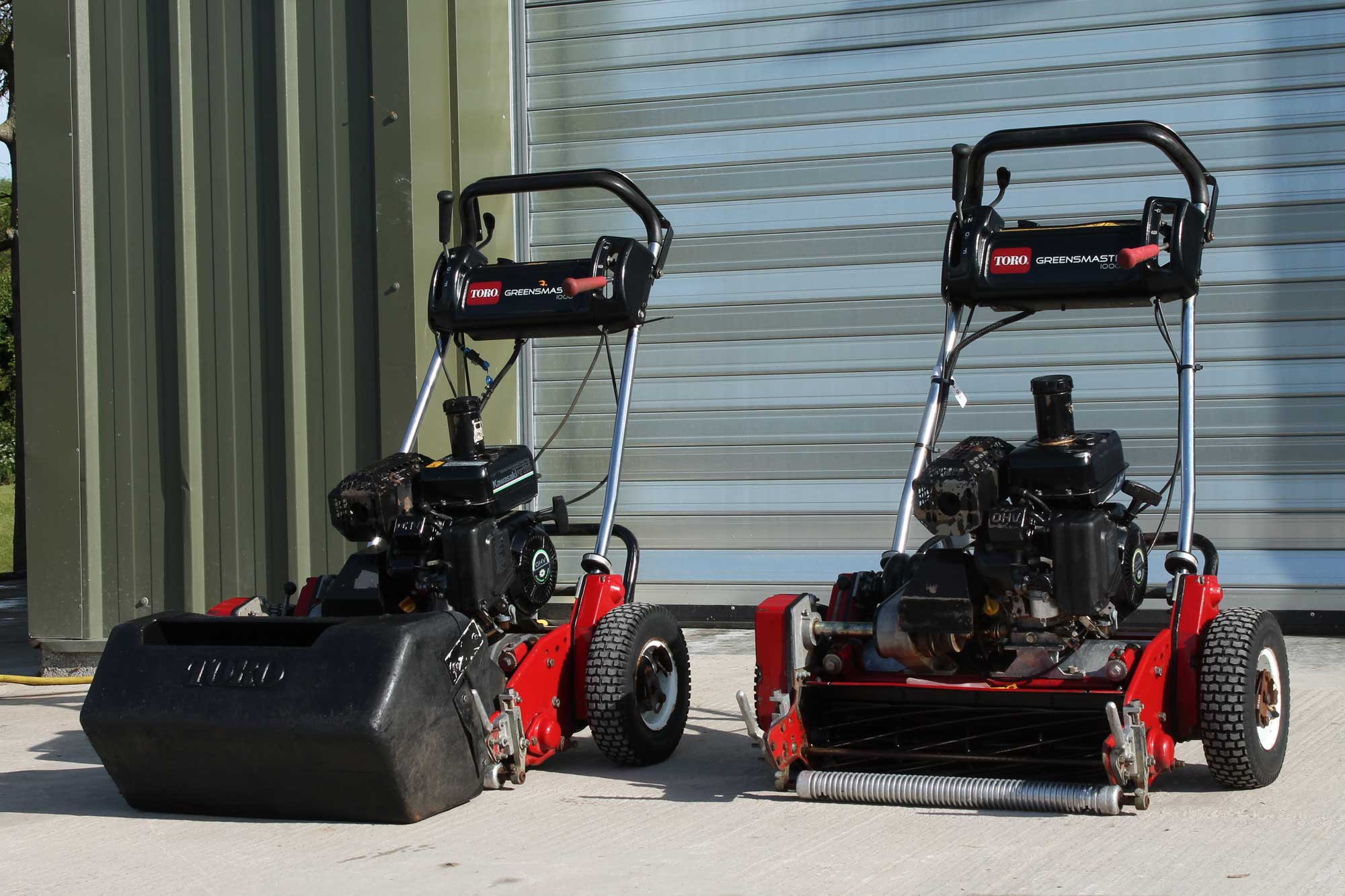

Greensmaster ® 1000 Specifications
| Honda GX120 – 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil. |
| FUEL CAPACITY |
| 2.1 qts (2L) |
| TRACTION DRIVE |
Positive drive belt driven split drums through a differential. Two “A” section v-belts with manually activated idler pulley provide drive engagement/disengagement.
Gear reduction ratio (2:1), mounted to engine. |
| REEL DRIVE |
| Positive drive belt powered reel. Manually activated jaw-type clutch provides drive engagement/disengagement |
| GROUND SPEED |
| Mowing speed: 1.5 mph (2.4 km/h) to 3.3 mph (5.3 km/h). Transport speed (maximum): 5.0 mph (8.0 km/h) with transport tires installed |
| DIFFERENTIAL |
| Peerless Series 100 |
| CLUTCHES |
| Traction: inside belt idler. Reel: jaw type |
| BRAKE |
| Service/parking-band type |
| TRACTION DRUM |
| Dual cast aluminum, 7.5″ (19 cm) diameter |
| CONTROLS |
Engine mounted; recoil starter, choke, fuel shut-off. Handle mounted: hour meter, on/off switch, throttle lever, traction engage lever, service/park brake lever, on/
off light switch (optional). Frame mounted: reel drive engage lever. Safety devices: neutral interlock system, servicing/park brake, enclosed drive system. Optional:
Operator Presence Control. |
| HANDLE |
| Loop style; 1″ (2.5 cm) diameter with easy pull pin height adjustment, operator selected. |
| TRANSPORT TIRES/KICKSTAND |
| Optional – Two quick detachable pneumatic tires, 3.00 x 3.25-6. 15 psi (1.03 bars) tire pressure. Lift assist kickstand is standard. |
| REEL CONSTRUCTION |
| 5″ (12.7 cm) diameter, 11 high-carbon steel blades welded to 5 stamped steel spiders. Optional 8-blade & 14-blade reel. |
| WIDTH OF CUT |
| 21″ (53.3 cm) |
| HEIGHT OF CUT |
| .078″ to 1.0″ (1.98-25.4 mm) |
| CLIP |
Standard w/Clip Kit
Standard 11-Blade: .16″ (4.3 mm) .25″ (6.4 mm)
Optional 8-Blade: .23″ (5.8 mm) .34″ (8.6 mm)
Optional 14-Blade: .13″ (3.3 mm) .19″ (4.9 mm) |
| BEDKNIFE/BEDBAR |
| Dual screw “click” adjustment to reel. EdgeMaxTM Microcut Bedknife standard |
| BEDKNIFE/BEDBAR |
| Dual screw “click” adjustment to reel. EdgeMaxTM Microcut Bedknife standard |
| FRONT ROLLER |
| Aluminum Wiehle roller standard; 2″ (5.1 cm) diameter, .200 spacing |
| WEIGHT |
| 220 lbs. (99.8 kg) with aluminum Wiehle roller, kickstand and grass basket, without transport tires and groomer. |
| CERTIFICATION |
| Designed in accordance to ANSI specifications B71.4-2017 and European Community (CE) specifications with required kits installed. |
